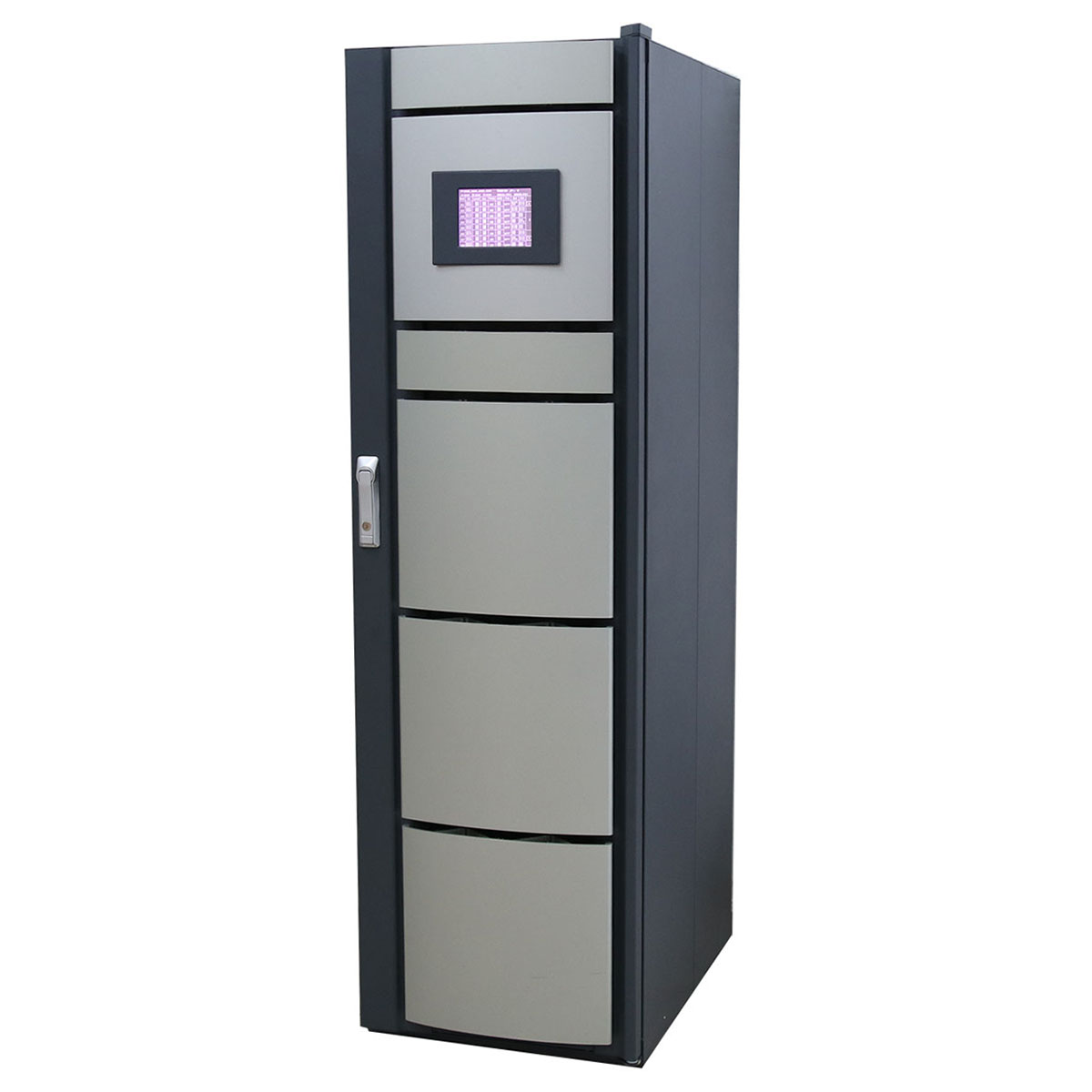

LT-60D Series Dimmer Rack

关键特性：

60-channel output, 3KW/6KW (optional)per channel

Network Dimmer Rack configured \"Reporting\"function

Professional quality filtering(300us)

Dual processor systems

MCB short-circuit protection and big power SCR

Opto-isolated signals input

Assisted ventilation by means of low-noise fans, regulated airflow and automatic stop, over-heat warning

10-level channel preheating(0～10%)

4 dimming laws

Configurable as dimmed outputs, switched outputs and pass through connectors on the basis of per channel

Store 10 cues, recall one specific lighting scene in case of emergency

Regulated outputs under 230V

Indication status for DMX signals and supply phases

LT-60D Series Dimmer Rack

规格描述：

Output Power : Max. 240KW

Input current : Max. 400A

MCB breaking capacity: 6KA

Power supply: 3NPE 400V 50HZ TN-S system

Supply voltage range: 230V±10%

EMC: EN55015

Safety: EN60439-1：2006; EN60950-1：2006

Ingress Protection: IP2X
